SS12F44 High-Actuator SPDT PCB Slide Switch

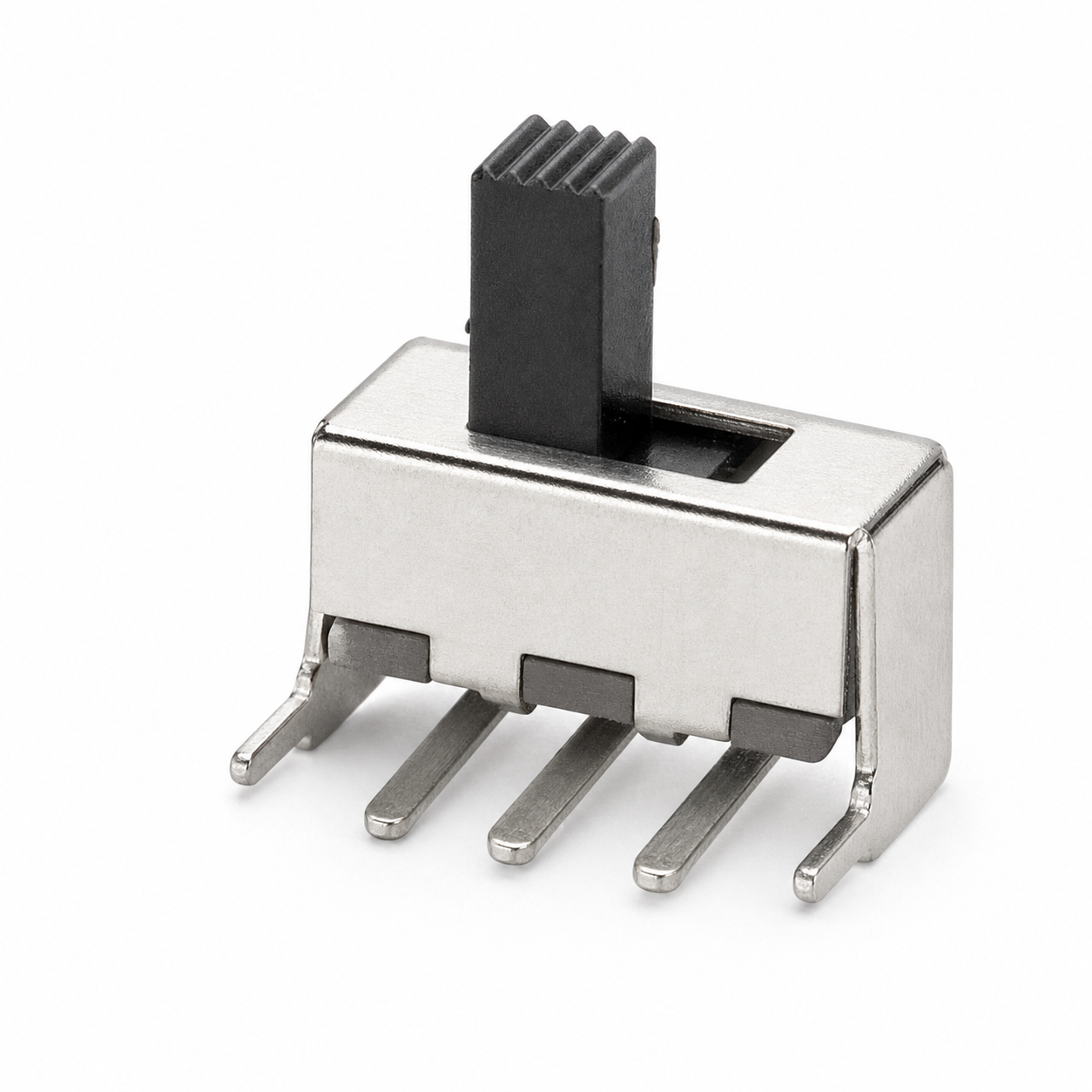

SS12F44 is a compact SPDT (1P2T) ON-ON slide switch designed for right-angle through-hole PCB mounting. Its tall vertical actuator provides convenient manual operation, while the metal-shielded housing helps protect the internal switching mechanism.
The switch features non-shorting contact timing, three electrical terminals and two outer mechanical mounting tabs. Its compact outline makes it suitable for electronic control boards and other space-conscious PCB assemblies.
Key Features
• SPDT / 1P2T contact configuration
• Two-position ON-ON switching function
• Tall vertical actuator for convenient operation
• 3.5 mm actuator travel
• Rated at 0.5A 50VDC
• Non-shorting contact timing
• Three right-angle PCB electrical terminals
• Two outer mechanical mounting tabs
• Metal-shielded compact housing
• Through-hole PCB mounting
• Life-cycle reference: 10,000 cycles
• Samples and bulk-order quotation available
Technical Specifications
Model: SS12F44
Switch type: Slide switch
Circuit configuration: SPDT / 1P2T
Switching positions: 2 positions
Switching function: ON-ON
Electrical rating: 0.5A at 50V DC
Contact resistance: 30 mΩ max.
Insulation resistance: 100 MΩ min. at 500V DC
Dielectric strength: 500V AC for 1 minute
Contact timing: Non-shorting
Operating force: 300 ±100 gf
Actuator travel: 3.5 mm

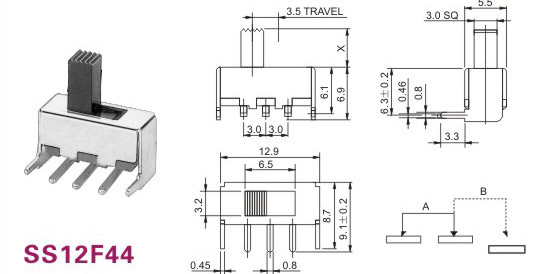

Actuator section: 3.0 mm square
Body length: Approximately 12.9 mm
Body width: Approximately 5.5 mm
Body height: Approximately 6.1 mm, excluding actuator and terminals
Electrical terminal pitch: 3.0 mm
Mounting method: Right-angle PCB through-hole
Housing: Metal-shielded
Dimensions: Millimetres unless otherwise specified
Typical Applications
• Audio equipment and signal-selection circuits
• Electronic control boards
• Consumer electronic products
• Model and hobby electronics
• Test and measurement equipment
• Mode and function selection
• Low-voltage control circuits
• Industrial electronic assemblies
Ordering Information
Please provide the model number, required actuator height, application, estimated quantity and any special electrical or mechanical requirements when requesting a quotation.
Different SS12F44 versions may use different actuator heights, terminal forms or electrical ratings. Final production specifications should be confirmed against the approved technical drawing or physical sample.
