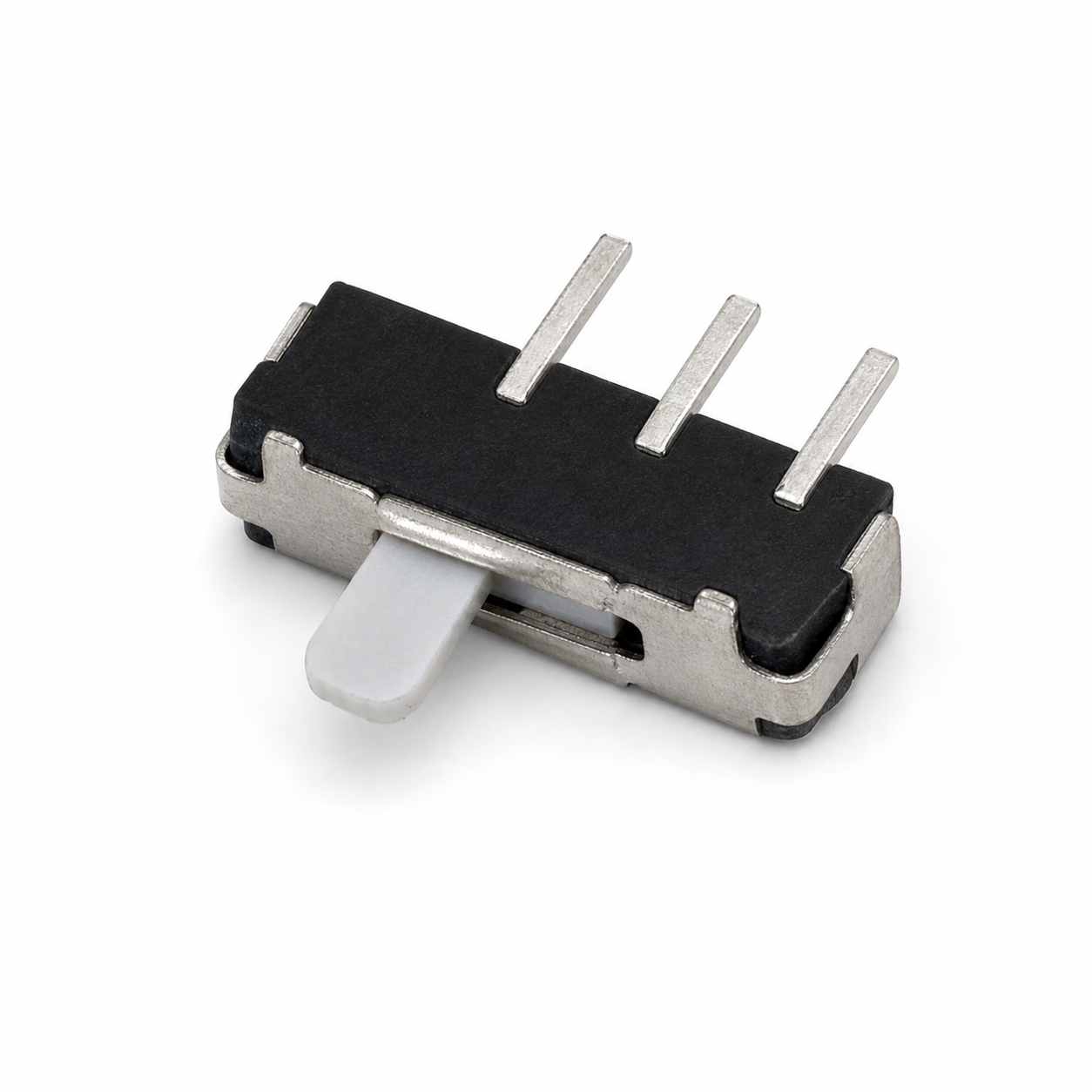

MSK1126 Ultra-Slim Side-Actuated Slide Switch
MSK1126 is a compact two-position SPDT slide switch designed for applications where PCB space and product height are limited. Its side-facing actuator allows switching from the edge of a circuit board or enclosure.
The switch combines a black insulated housing, a light-colored side actuator and a metal retaining shell. Three PCB terminals provide a simple changeover switching configuration for signal selection and low-power control circuits.
Key Features
- SPDT two-position switching configuration
- Three PCB terminals in one row
- Side-facing actuator for edge-access operation
- Ultra-slim and compact housing
- Metal-reinforced construction
- Suitable for space-limited PCB layouts
Mechanical Specifications
- Overall length: approximately 8.6 mm
- Metal housing length: approximately 6.92 mm
- Overall width: approximately 2.0 mm
- Main body height: approximately 2.9 mm
- Actuator extension: approximately 2.1 mm
- Terminal pitch: approximately 2.0 mm
- Terminal width: approximately 0.5 mm
- Metal shell thickness: approximately 0.25 mm
Typical Applications
- Portable electronic devices
- Mode and function selection
- Consumer electronics
- Compact control modules
- Instrumentation and communication equipment
- Edge-access PCB controls
Ordering Information
Please confirm the required electrical rating, operating life, terminal configuration, actuator direction and packaging method before ordering. Samples and bulk-order quotations are available upon request.

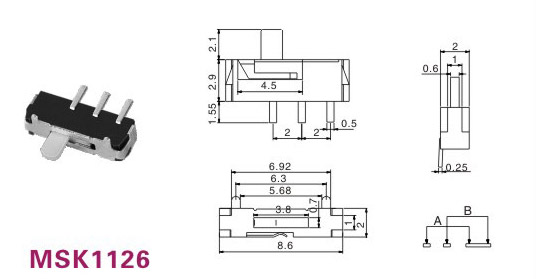

MSK1126 mechanical dimensions and SPDT switching circuit.
