MSK1116 Ultra-Low-Profile 3-Position Slide Switch
MSK1116 is a compact three-position slide switch designed for space-constrained PCB applications. The technical drawing indicates A, B and C switching positions together with a five-terminal contact arrangement.

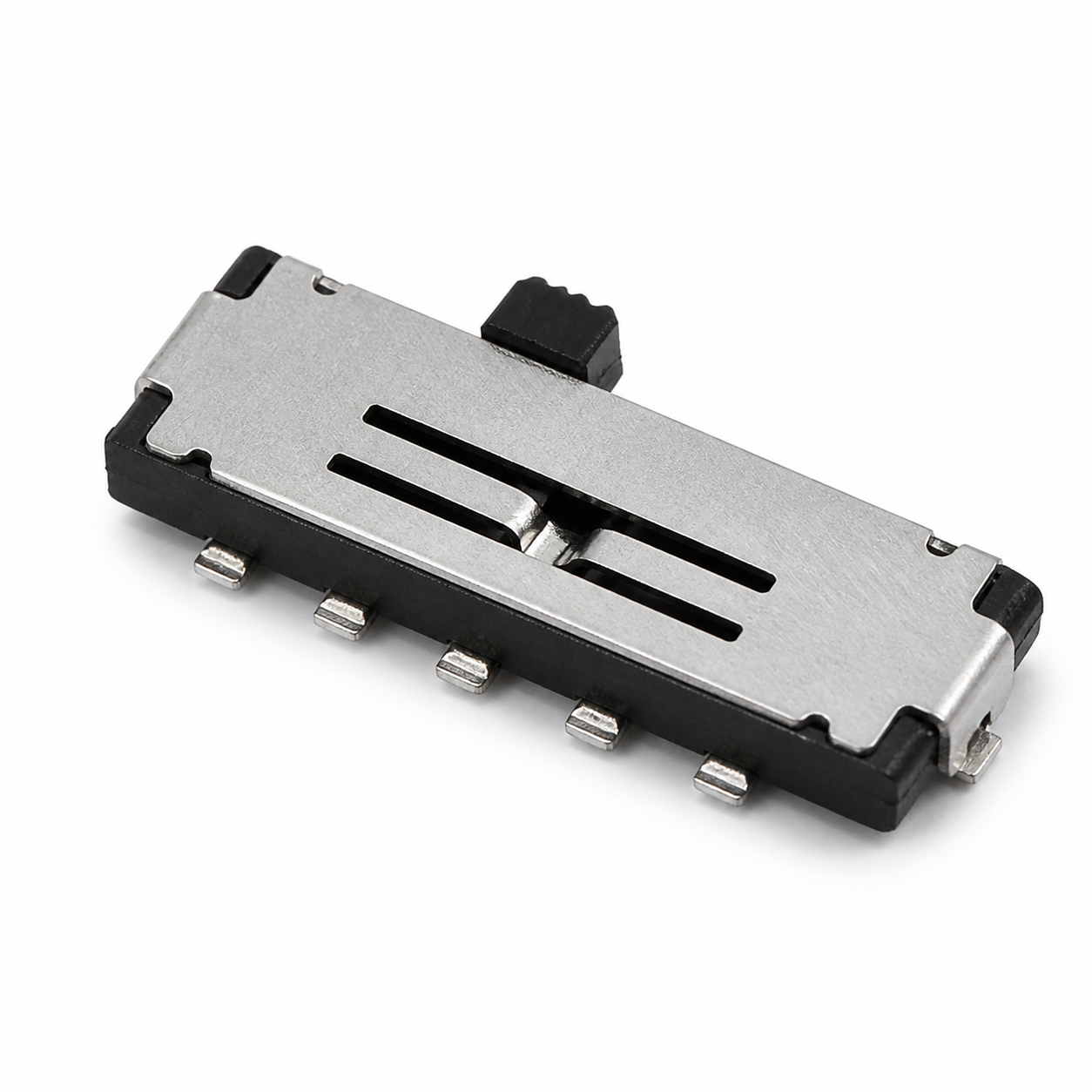

The switch combines a low-profile black insulating base, a stamped metal top cover and a compact slide actuator. Its approximately 9.94 mm body length makes it suitable for portable electronics, control modules and other densely populated PCB designs.
Key Features
- Three-position A/B/C switching arrangement
- Five PCB terminals
- Approximately 9.94 mm overall body length
- Ultra-low-profile construction
- Metal-reinforced top cover
- Compact low-height slide actuator
- Designed for space-limited PCB layouts
Mechanical Specifications
- Overall length: approximately 9.94 mm
- PCB layout reference length: approximately 9.1 mm
- Body width: approximately 2.97 mm
- Lower body thickness: approximately 1.06 mm
- Metal cover thickness: approximately 0.35 mm
- Actuator projection: approximately 1.25 mm
- Terminal configuration: five terminals
- Locating holes: approximately Ø0.8 mm
- Locating-hole spacing: approximately 6.0 mm
Typical Applications
- Portable electronic devices
- Mode and function selection
- Consumer electronics
- Communication equipment
- Instrumentation and control modules
- Compact PCB assemblies
Ordering Information
Please confirm the required electrical rating, contact arrangement, actuator travel, mounting method, packaging and operating-life requirements before ordering. Contact ERI for model confirmation, samples and bulk quotation.

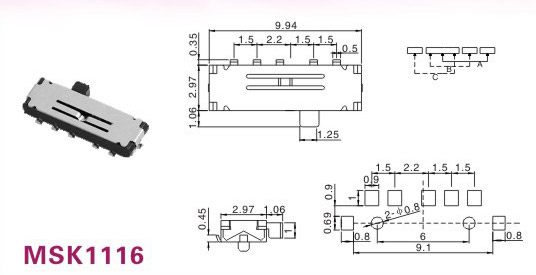

MSK1116 mechanical dimensions and A/B/C switching diagram.
