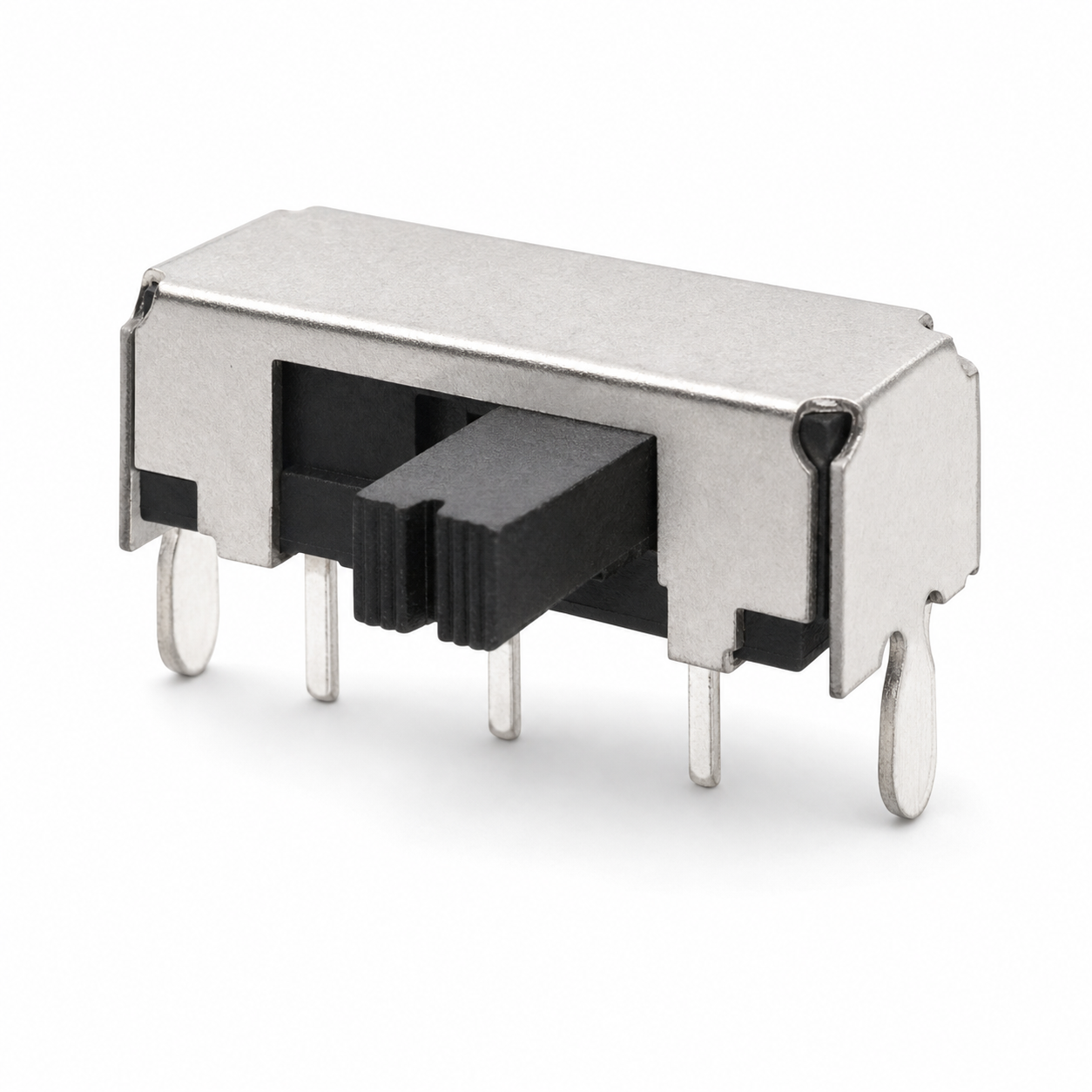

SK13D02 Metal-Shielded 1P3T Mini Slide Switch
SK13D02 is a compact 1P3T slide switch designed for PCB mounting in space-constrained electronic products. It combines a low-profile metal-shielded housing, horizontal side actuator and through-hole terminals in a compact 12.6 mm body.
With a 0.3A 50VDC electrical rating and 2 mm actuator travel, the switch is suitable for low-voltage selector circuits, function selection and signal-routing applications.
Key Features
• 1P3T single-pole, triple-throw configuration
• Electrical rating of 0.3A at 50V DC
• Horizontal side-actuating slider
• 2 mm operating travel
• Compact metal-shielded housing
• PCB through-hole terminal design
• Suitable for compact electronic control boards
• Samples and bulk-order quotation available

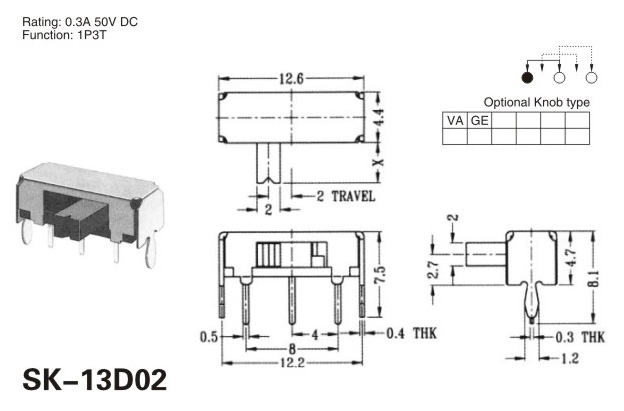

Technical Specifications
• Model: SK13D02 / SK-13D02
• Contact Configuration: 1P3T
• Electrical Rating: 0.3A 50V DC
• Actuation Type: Horizontal slide
• Travel: 2.0 mm
• Housing Length: Approximately 12.6 mm
• Housing Width: Approximately 4.4 mm
• Body Length: Approximately 12.2 mm
• Body Height: Approximately 7.75 mm
• Mounting Style: PCB through-hole
• Housing: Metal-shielded construction
• Dimensions: Millimetres unless otherwise specified
Typical Applications
• Mode and function selection
• Low-voltage signal routing
• Compact consumer electronic devices
• Electronic control boards
• Communication and peripheral equipment
• Small instruments and control modules
Ordering Information
Please provide the SK13D02 model number, required actuator configuration, application details and estimated order quantity when requesting samples or a quotation. Final dimensions, terminal layout and electrical requirements should be confirmed against the technical drawing and approved sample.
