HDMI-M-1916 19-Pin HDMI Type A 180° Vertical PCB Receptacle

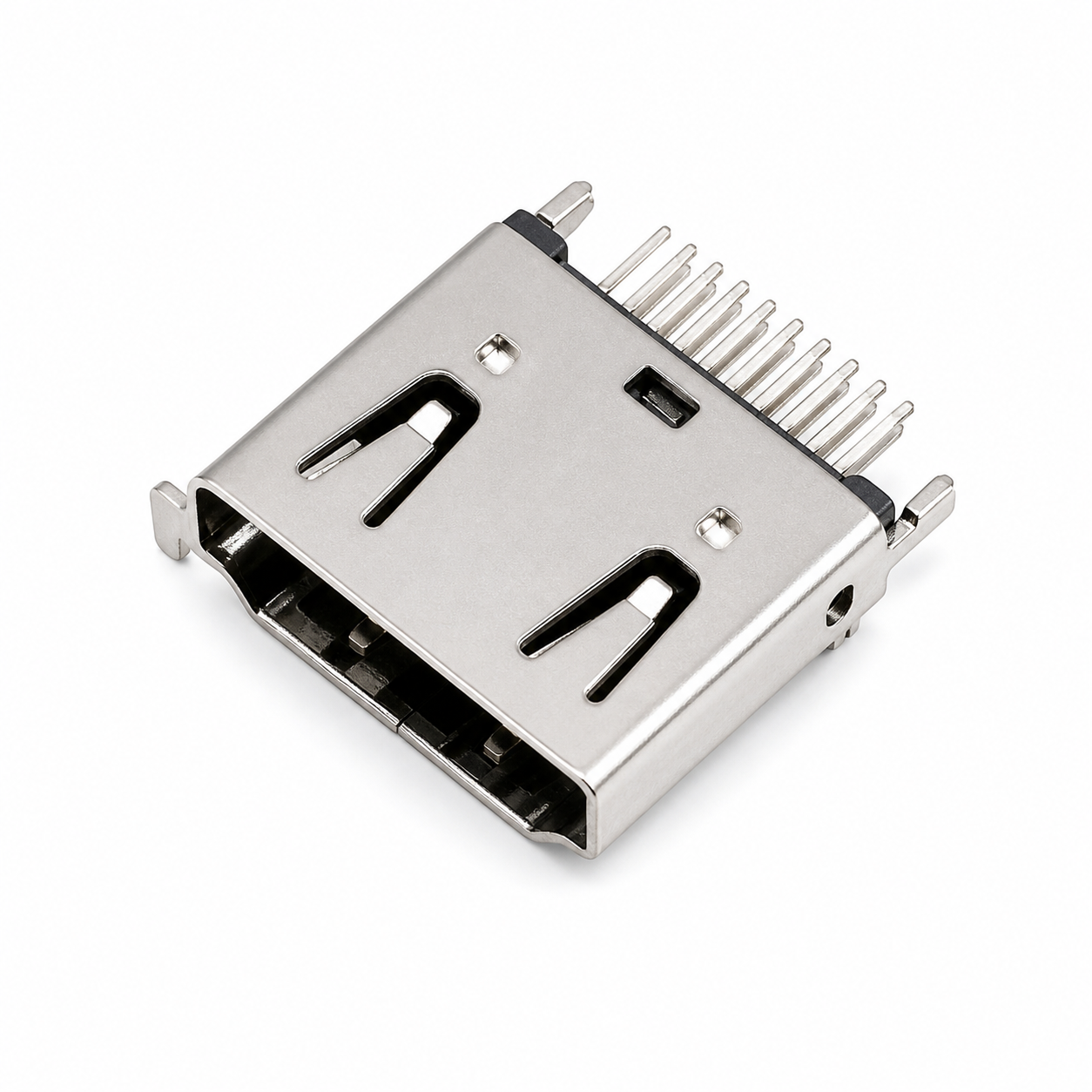

The HDMI-M-1916 is a 19-pin HDMI Type A female receptacle designed for straight 180-degree through-hole mounting on printed circuit boards. Its vertical configuration allows the mating direction to be positioned perpendicular to the PCB, making it suitable for equipment requiring a top-entry or straight-entry HDMI interface.
The connector features through-hole signal terminals, mechanical mounting posts, a black insulating housing and a stamped metal shield. The shielded shell protects the internal contacts and provides additional mechanical support during connector insertion and removal.
Key Features
- 19-pin HDMI Type A female receptacle
- Straight 180-degree vertical PCB configuration
- Through-hole signal termination
- Version B mechanical housing design
- Metal shield for contact and mechanical protection
- PCB mounting posts for secure installation
- Suitable for top-entry or straight-entry interfaces
Applications
- Displays and monitors
- Audio and video equipment
- Multimedia control systems
- Consumer electronic products
- Industrial and embedded equipment
- OEM electronic assemblies

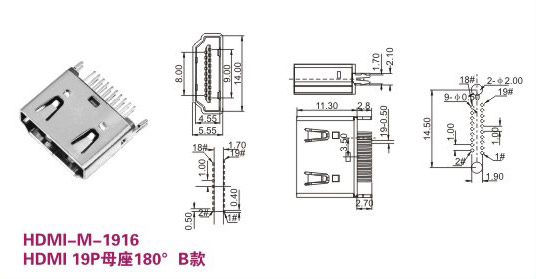

Please refer to the product drawing for the exact dimensions and recommended PCB layout. Contact ERI for samples, specification confirmation and OEM volume quotations for the HDMI-M-1916 connector.
