HDMI-G-1903 19-Pin HDMI Type A Male Straight Through-Hole PCB Plug
The HDMI-G-1903 is a standard full-size HDMI Type A male plug designed
for straight through-hole mounting on a printed circuit board. It provides
19 electrical contacts arranged in two staggered terminal rows, making it
suitable for PCB-based HDMI interconnection and equipment integration.
The connector features a stamped metal shielding shell, a black insulating
contact insert and compact shell-retention tabs. Its Version D mechanical
configuration uses 10 terminals in one row and 9 terminals in the second
row, providing all 19 HDMI connections in a compact PCB footprint.
Key Features
- Standard full-size HDMI Type A male interface
- 19 electrical contacts
- Straight PCB-mount configuration
- Through-hole termination
- Two staggered terminal rows: 10 contacts plus 9 contacts
- Stamped metal shielding shell
- Integrated PCB-retention tabs
- Version D mechanical configuration
- Approximate metal-shell width: 13.9 mm
Typical Applications
- HDMI adapters and interface modules
- Docking stations and multimedia equipment
- Display and video-processing devices
- Embedded electronic systems
- Test fixtures and development boards
- OEM PCB interconnection projects
Ordering Information

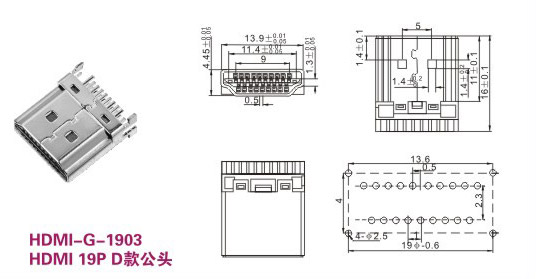

Before production, verify the PCB footprint, 10+9 terminal arrangement,
pin numbering, shell-retention holes and mechanical dimensions against
the official HDMI-G-1903 technical drawing. Contact ERI for samples,
specification confirmation and OEM quotation support.
