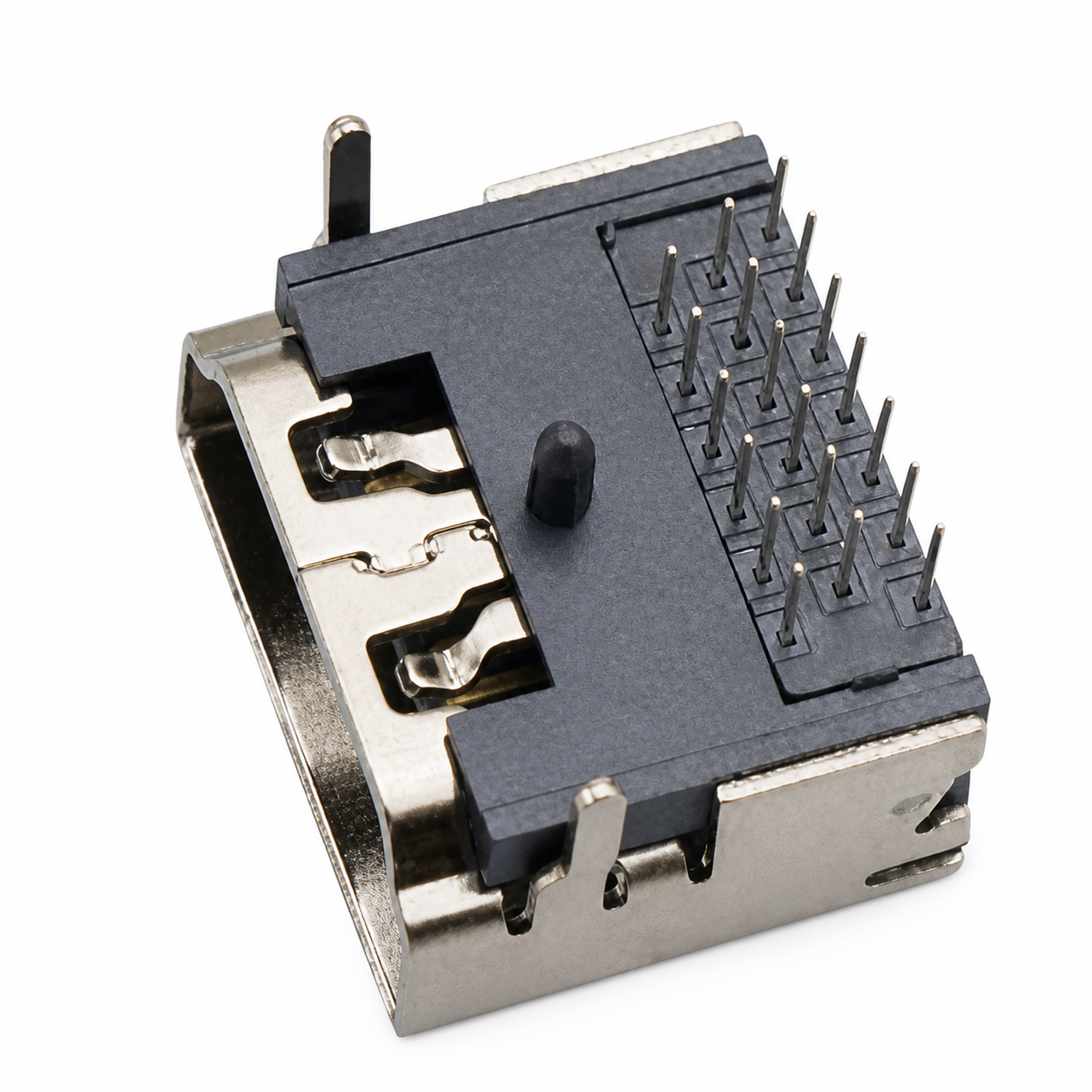

HDMI-M-1908 19-Pin HDMI Type A 90° Three-Row DIP PCB Receptacle
The HDMI-M-1908 is a 19-pin HDMI Type A female receptacle designed for 90-degree right-angle through-hole mounting on printed circuit boards. Its three-row DIP terminal arrangement provides an organized PCB connection layout while supporting a horizontal mating direction.
The connector features a stamped metal shield, black insulating housing, through-hole signal terminals and mechanical PCB mounting tabs. Its shielded construction protects the internal contact system and provides mechanical support during repeated connector insertion and removal.
Key Features
- 19-pin HDMI Type A female receptacle
- 90-degree right-angle PCB configuration
- Three-row DIP signal terminal arrangement
- Through-hole PCB termination
- Horizontal mating direction
- Metal shield for mechanical protection
- PCB mounting tabs for secure installation
Applications
- Displays and monitors
- Audio and video equipment
- Multimedia systems
- Consumer electronic products
- Industrial and embedded equipment
- OEM electronic assemblies
Please refer to the product drawing for exact dimensions and the recommended PCB layout. Contact ERI for samples, specification confirmation and OEM volume quotations for the HDMI-M-1908 connector.
