Product Description

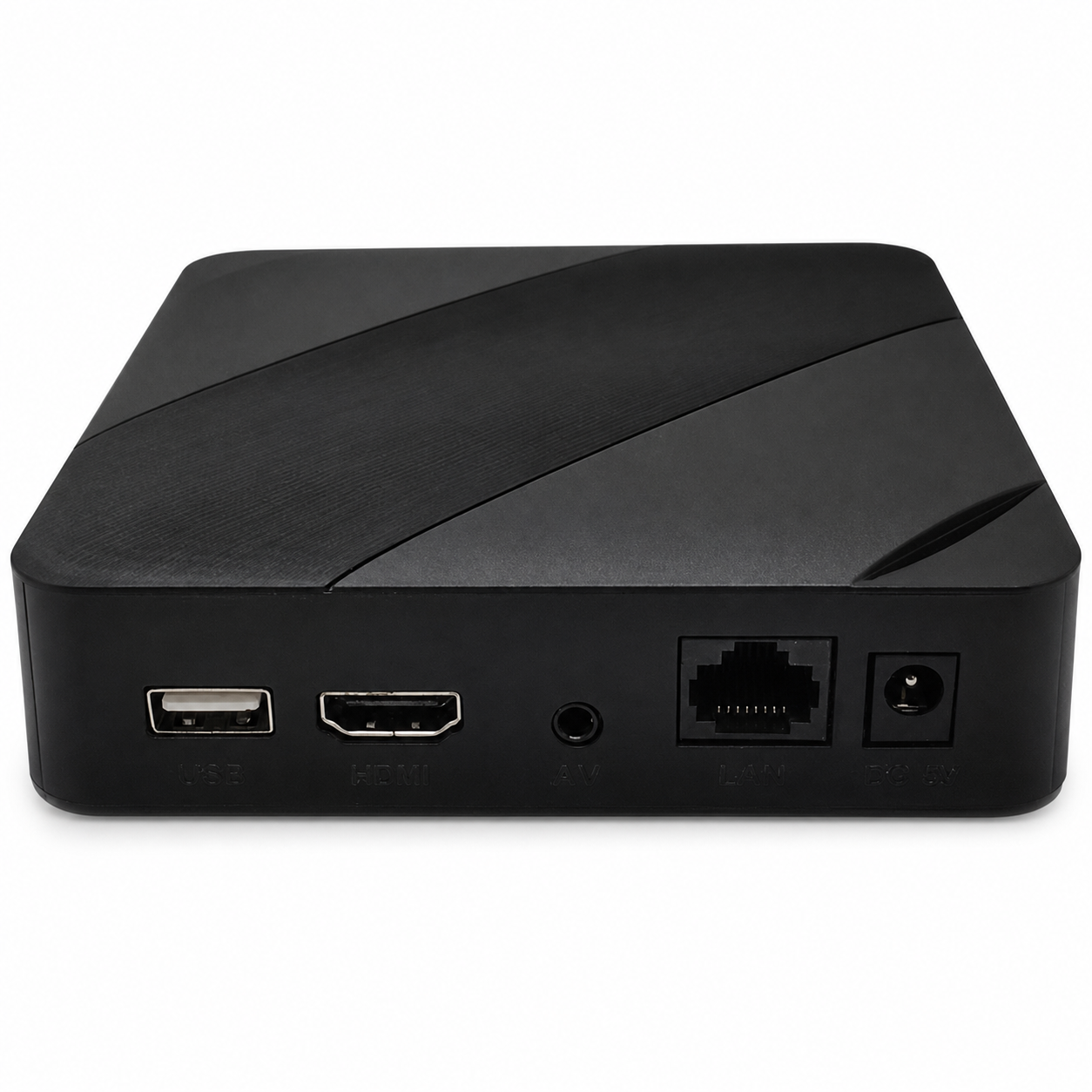

Linux IPTV H.265 Set-Top Box for Operator Projects
ERI-IPTV004 is a compact Linux IPTV set-top box designed for IPTV operators, system integrators and distributors. It supports H.265/HEVC and H.264 HD video decoding, multiple IPTV streaming protocols, wired Ethernet and built-in 2.4 GHz Wi-Fi.
The hardware platform, embedded Linux configuration, IPTV middleware, user interface, boot logo, channel list, remote control and packaging can be customized according to project requirements.
Key Features
- Embedded Linux IPTV platform configurable by project
- H.265/HEVC, H.264, MPEG-4, MPEG-2 and additional video decoding formats
- Video resolution up to Full HD 1080p
- HLS (M3U8), HTTP, UDP, RTP, RTSP and RTMP protocol support
- 10/100 Mbps Ethernet RJ45 connection
- Built-in 2.4 GHz Wi-Fi
- HDMI 1.4 and CVBS video outputs
- USB 2.0 for playlist import and software functions
- Parental control and multiple account memory
- MAC-based device service management
- Automatic channel list updates from a preset server URL
- Energy-saving automatic power-off after extended inactivity
IPTV Middleware and Playlist Options
ERI-IPTV004 can be configured for different operator middleware and content delivery environments. Available options include:
- Classic Stalker/Ministra STB API integration
- Xtream Codes API integration
- Online M3U and XML playlists
- HTTP, HLS and UDP live streaming
- Playlist download from an operator server
- M3U and XML channel list import through USB
- UDP channel import
- Local playlist storage and multi-account login
Middleware compatibility, application availability and content protection requirements should be confirmed according to each operator project.
Technical Specifications
| Operating System | Embedded Linux, configuration by project |
|---|---|
| IPTV Protocols | HLS (M3U8), HTTP, UDP, RTP, RTSP and RTMP |
| Video Decoding | H.265/HEVC, H.264, MPEG-4, H.263 P3, AVS, AVS Plus, MPEG-2 and MPEG-1 |
| Video Resolution | 1080p, 1080i, 720p, 576p and 480p |
| Video Outputs | HDMI 1.4 and CVBS through 3.5 mm AV jack |
| Audio Decoding | MPEG-1 Layers I/II, MP3, MPEG-4 AAC, AAC Plus and DRA |
| Network | 10/100 Mbps Ethernet RJ45 and built-in 2.4 GHz Wi-Fi |
| USB | 1 x USB 2.0 |
| Power Input | 12V DC, 1A |
| Dimensions | 116 x 116 x 30 mm |
OEM/ODM Customization
ERI provides hardware and software configuration, customized boot logos, operator-branded user interfaces, preset server URLs, channel list management, remote control customization and customized packaging.
The box can also be configured to open a selected channel automatically after power-on, subject to operator requirements.
Planning a Linux IPTV deployment? Contact ERI with your streaming protocols, middleware, user interface, content protection and estimated quantity requirements for project evaluation.
