Product Description

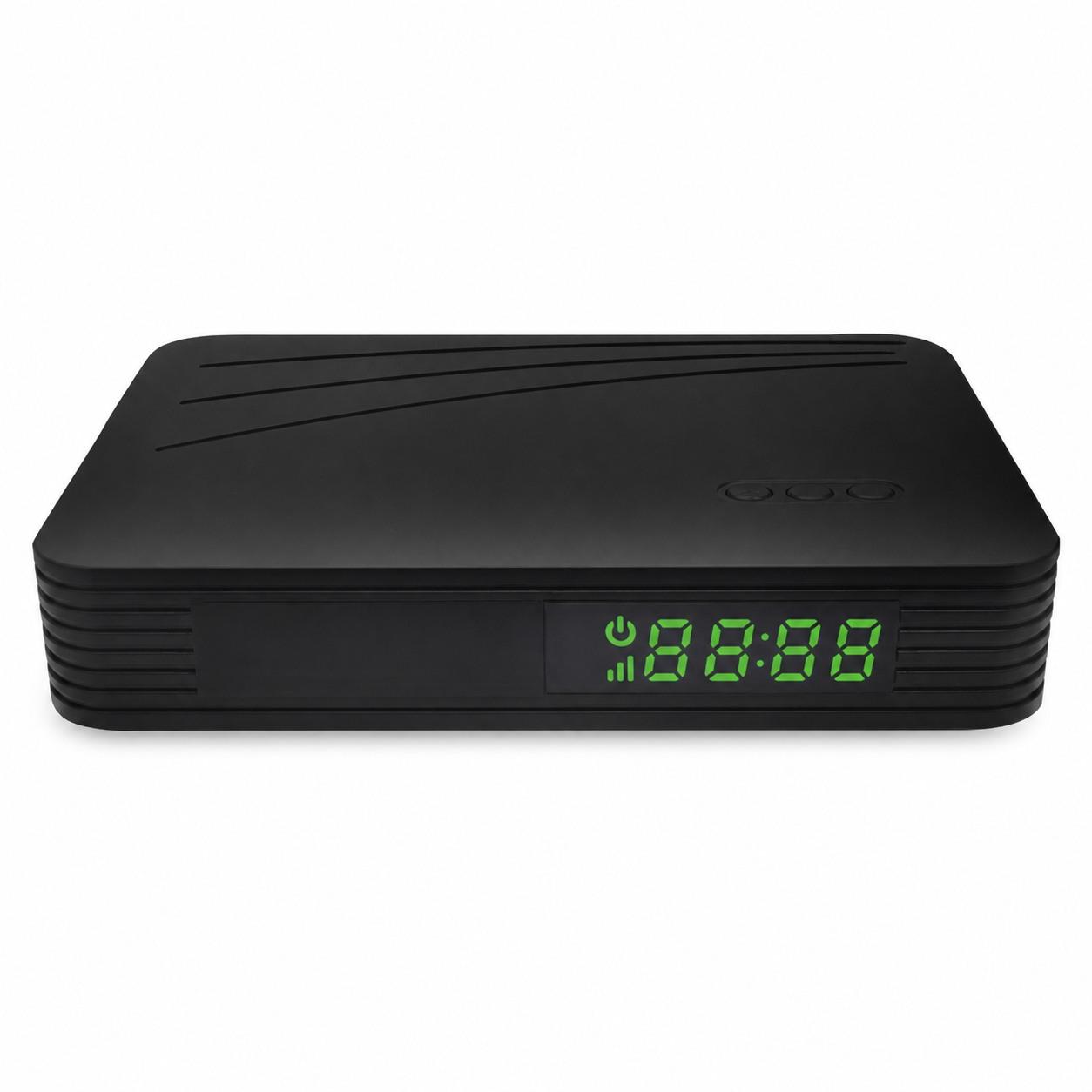

DVB-T2 & DVB-C/T2 H.265 HD Set-Top Box with Optional LAN
ERI-DVBCT2HD006 is a flexible digital TV set-top box platform available in DVB-T2-only and hybrid DVB-C/T2 configurations. It is designed for operators, system integrators and regional broadcast projects that require H.265/HEVC HD decoding and project-specific customization.
An optional LAN interface is available for software integration, network services and customized operator applications.
The product supports H.265/HEVC and H.264 HD video decoding. An optional LAN interface is available for software integration, network services and project-specific applications.
Key Features
- Available in DVB-T2-only or DVB-C/T2 hybird configurations
- DVB-T legacy compatibility available by project
- H.265/HEVC, H.264, MPEG-4 and MPEG-2 video decoding
- Supports HD video output up to 1080p
- 6/7/8 MHz channel bandwidth
- PAL and NTSC video formats
- Front-panel LED display
- USB PVR recording and time-shift functions
- Automatic and manual channel scanning
- 7-day EPG, channel booking, parental control and timer
- Multilingual OSD and customizable boot logo
- USB and OTA software upgrade
- CAS integration available according to project requirements
- Optional LAN interface for network and interactive functions
Supported Standards
- DVB-T2: EN 302 755
- DVB-C: ITU-T J.83 Annex A/C and Annex B
- DVB-T: EN 300 744, available by project
Video and Audio
- Video decoding: H.265/HEVC, H.264, MPEG-4, MPEG-2 and MPEG-1
- Video resolution: 1080p, 1080i, 720p, 576p and 480p
- Video formats: PAL/NTSC
- Aspect ratio: 4:3 and 16:9
- Audio decoding: MPEG-1, MP3, MPEG-4 AAC, AAC+ and DRA
- Audio modes: Left, right and stereo
- Sampling frequency: 32 kHz, 44.1 kHz and 48 kHz

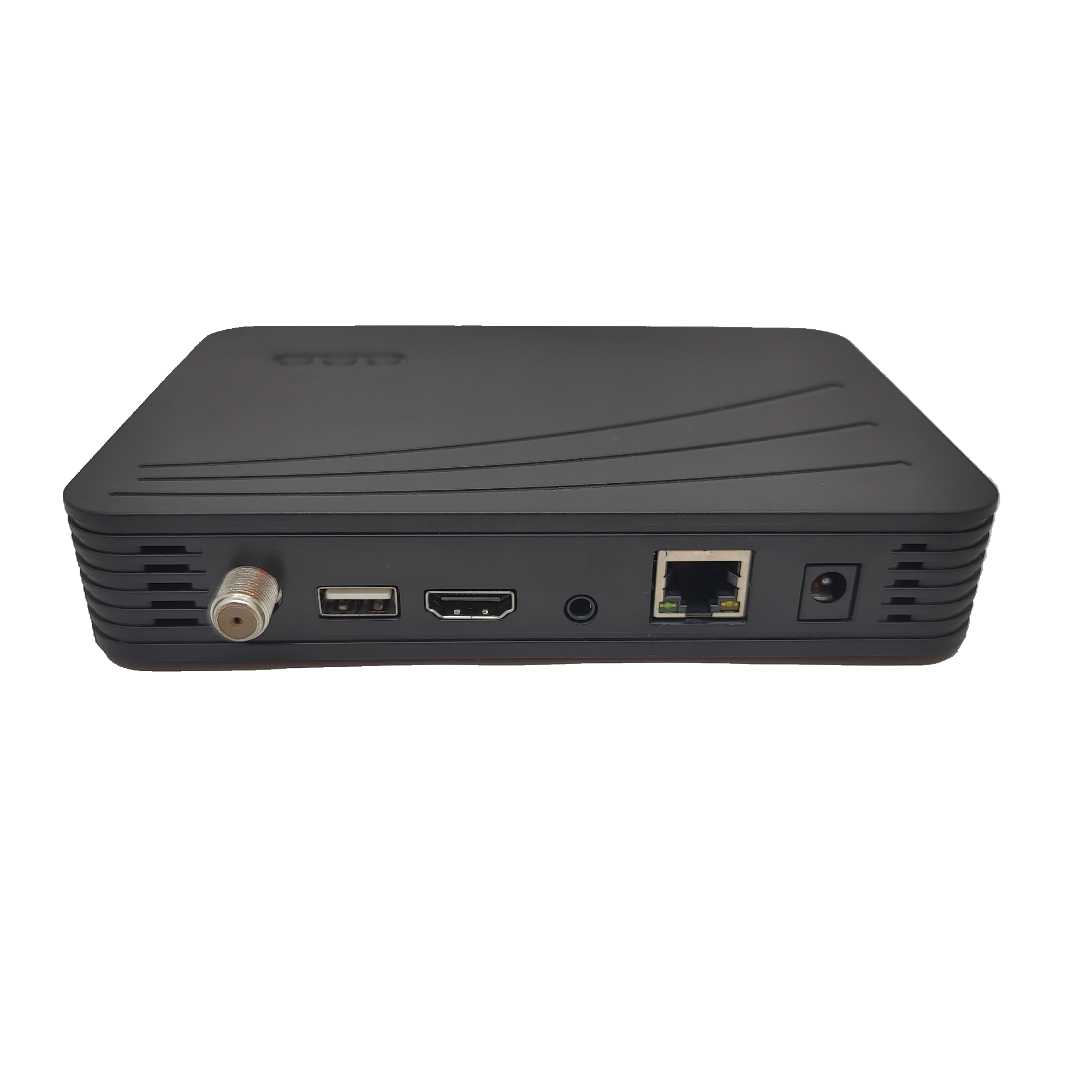

Interfaces
- RF input
- HDMI output
- USB port
- CVBS/AV output
- Optional LAN port
- DC power input
OEM/ODM Customization
ERI supports hardware and software customization, CAS/DRM integration, multilingual user interfaces, boot logos, remote controls and customized packaging. Hardware platform and memory configuration can be selected according to project requirements.
Products can be supplied as CBU, SKD or CKD. Please provide your target broadcast standards, required interfaces, CAS requirements, software functions and estimated quantity for project evaluation.
