Product Description
Compact DVB-C H.265 HD Set-Top Box for Cable Operators
ERI-DVBCHD008 is a compact DVB-C HD set-top box designed for cable TV operators, system integrators and distributors. It supports H.265/HEVC and H.264 video decoding, stable DVB-C reception and flexible CAS integration.
Hardware configuration, software functions, user interface, language, boot logo, remote control and packaging can be customized for different operator projects.
Key Features
- Compliant with DVB-C digital cable television standards
- Supports ITU-T J.83 Annex A/C and Annex B
- H.265/HEVC, H.264, MPEG-4, MPEG-2 and MPEG-1 video decoding
- Supports 16/32/64/128/256 QAM demodulation
- HDMI 1.4 output with resolution up to 1080p
- USB PVR recording and time-shift functions
- Automatic and manual channel scanning with network search
- 7-day EPG, LCN, favorites, parental control and timer
- Multilingual OSD and customizable boot logo
- Smart-card, cardless/COB and software CAS integration options
- USB software upgrade; OTA and RS232 upgrade available by project
Technical Specifications
- Input signal range: 38–100 dBμV
- Input impedance: 75 Ω
- Channel bandwidth: 6/7/8 MHz
- Video formats: PAL/NTSC
- Aspect ratio: 4:3 and 16:9
- Video resolution: 1080p, 1080i, 720p and 576p
- Audio decoding: MPEG-1, MP3, MPEG-4 AAC, AAC+ and DRA
- Audio modes: Left, right and stereo
- Sampling frequency: 32 kHz, 44.1 kHz and 48 kHz

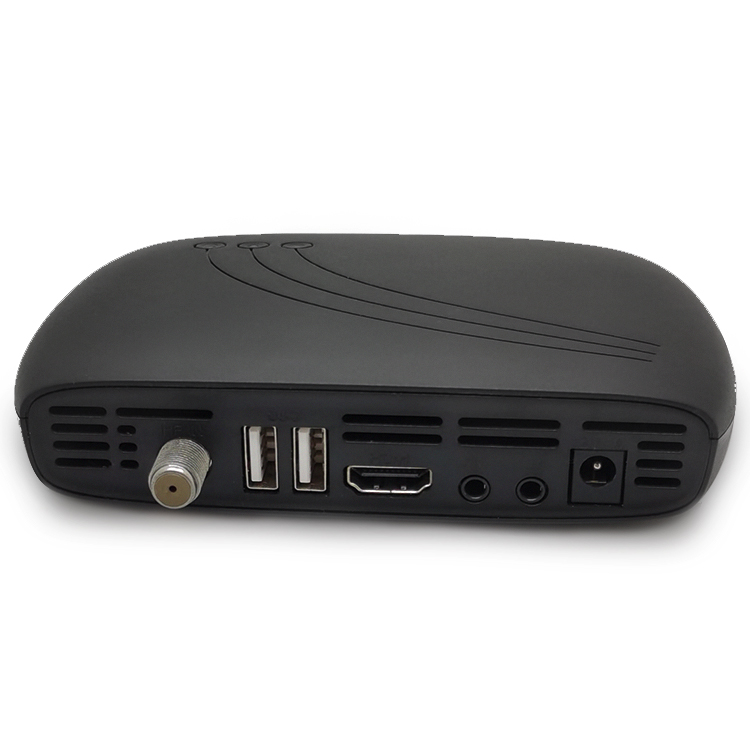

Interfaces
- RF input
- HDMI output
- USB ports
- AV output
- IR extension interface
- DC power input
OEM/ODM Customization
ERI supports hardware and software customization, CAS/DRM integration, multilingual user interfaces, boot logos, remote controls and customized packaging. Products can be supplied as CBU, SKD or CKD according to project requirements.
Planning a DVB-C deployment? Contact ERI with your network standard, CAS requirements, software functions and estimated quantity for project evaluation.
