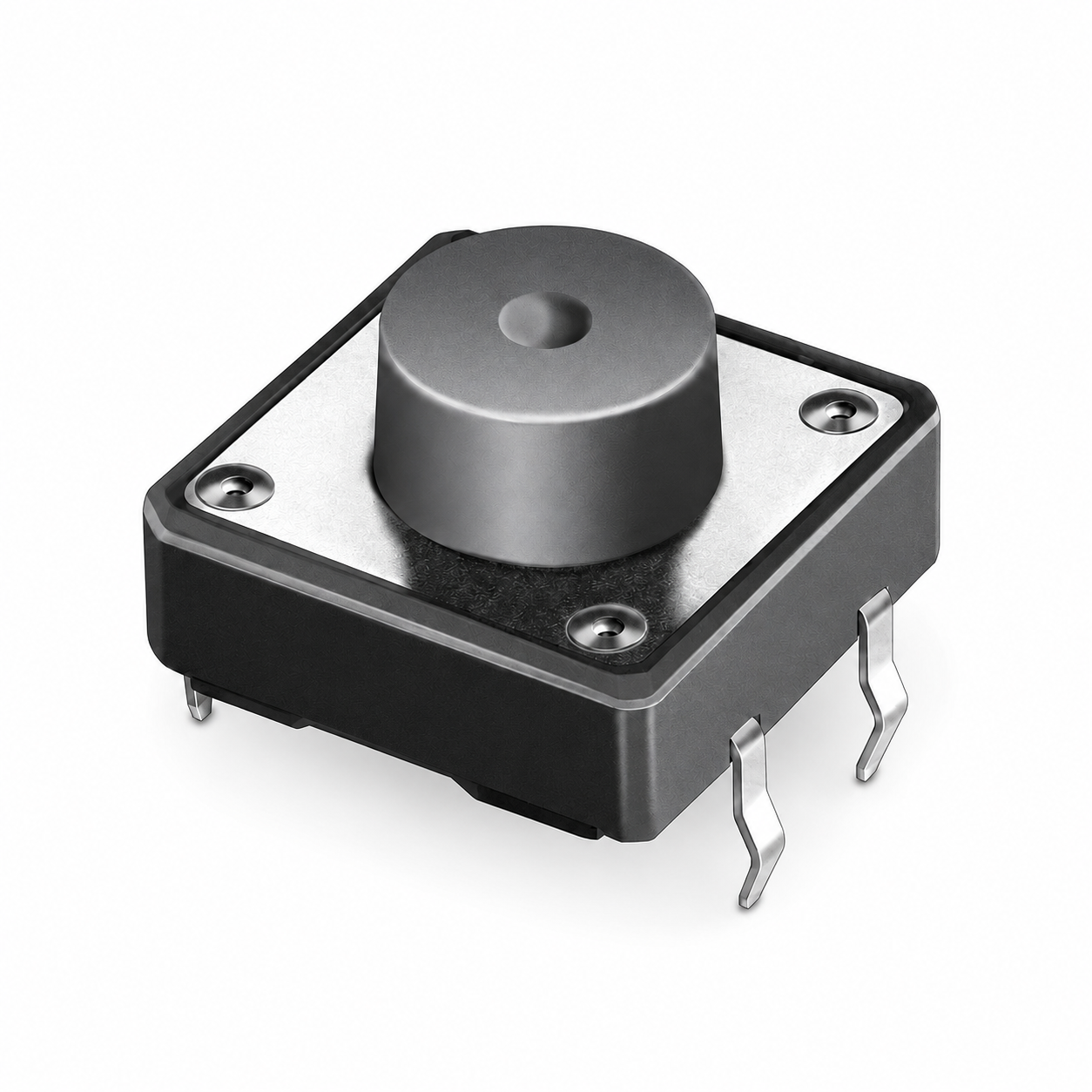

TS12A-H 12 mm Through-Hole Tactile Push Button Switch
TS12A-H is a 12 mm-class through-hole tactile push button switch featuring a round Ø6.7 mm actuator and a stable square metal frame. Its compact PCB-mount construction is suitable for control panels, industrial equipment, household appliances and electronic control devices.
The switch uses a momentary normally open contact configuration. Four through-hole terminals provide secure PCB mounting and straightforward integration into control and user-interface circuits.
Key Features
- 12 mm-class tactile push button switch
- Momentary normally open contact configuration
- Round Ø6.7 mm actuator
- Through-hole PCB mounting
- Four-terminal construction
- Square metal top frame for mechanical stability
- Compact design for control and interface applications
- Suitable for samples, replacement projects and volume orders
Mechanical Dimensions
| Model | TS12A-H |
|---|---|
| Switch type | Momentary tactile push button switch |
| Contact configuration | Normally open |
| Mounting method | Through-hole PCB mounting |
| Actuator diameter | Ø6.7 mm |
| Main body width | 12.5 mm |
| Overall frame width | 14.1 mm |
| Actuator protrusion | Approximately 4.0 mm above the upper frame |
| PCB terminal spacing | 12.5 × 5.0 mm |
| Recommended PCB holes | 4 × Ø1.2 mm |

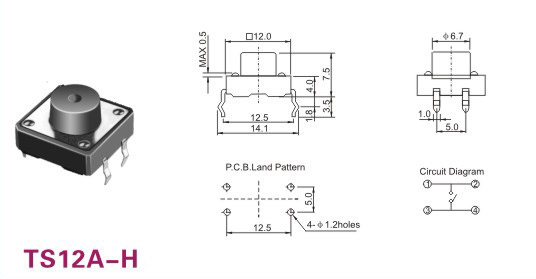

Dimensions are based on the supplied technical drawing. Electrical rating, operating force, travel and service life should be confirmed before ordering.
Typical Applications
- Industrial control panels
- Household appliances
- Power supplies and electronic equipment
- Testing and measuring instruments
- Audio and communication devices
- PCB control and reset functions
Ordering Support
Send ERI your required quantity, application, operating force, electrical rating and other technical requirements. Samples, model confirmation and bulk-order quotations are available for qualified projects.
