T1566-10 5-Way SMD Navigation Tactile Switch

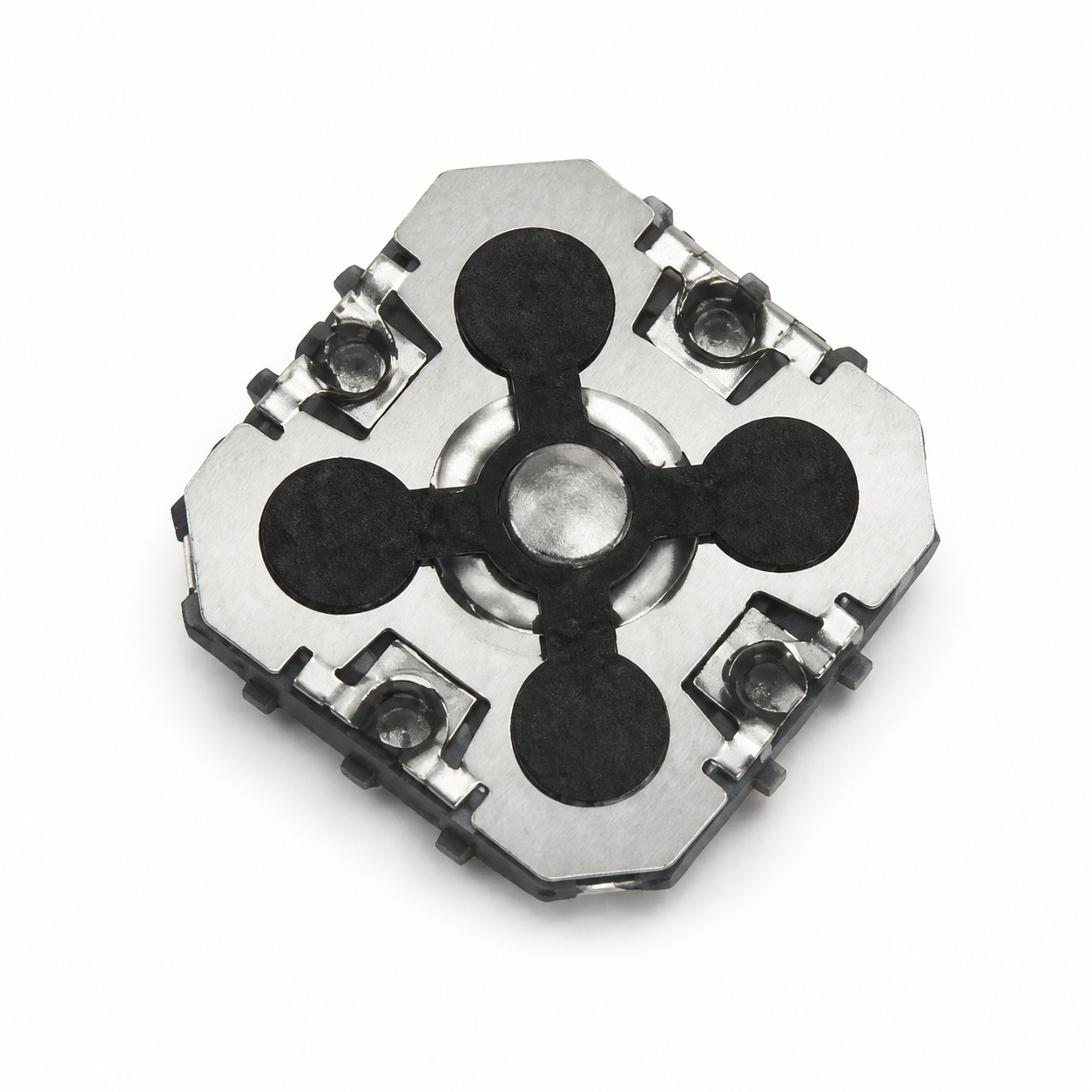

T1566-10 is a compact multi-direction tactile switch designed to combine up, down, left, right and center-push input functions in a single low-profile component. Its square SMD construction helps reduce PCB space while providing intuitive navigation control.
The switch is suitable for remote controls, handheld electronics, test instruments, control panels and other compact human-machine interface applications. Please confirm the required operating force, travel, contact rating and lifecycle with ERI before production approval.
Key Features
- Five-way operation: four directional inputs plus center push
- Low-profile square SMD package
- Space-saving navigation input solution
- Distinct directional contact layout
- Suitable for automated PCB assembly
- Technical drawing and terminal layout available for design verification
Typical Applications
- Remote controls and handheld devices
- Consumer electronics
- Industrial control panels
- Test and measurement equipment
- Compact user-interface modules
Ordering Information
Send ERI your target operating force, electrical rating, lifecycle, quantity and application requirements for model confirmation, samples and quotation.
T1566-10 dimensions, PCB layout and contact diagram
