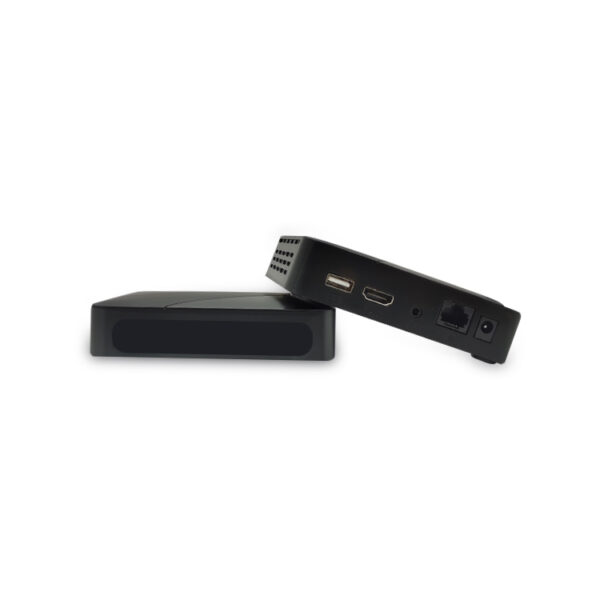

IPTV HEVC H.265 Box M3U8 Multicast ERI-DVBIPTV004

CPU:GX6701H1
CPU Frequency:1500DMIPS 32bit
Flash:16MB
DDR3:128MB
OS:Linux 4.9
Protocol:HLS(M3U8),UDP,RTP,RTSP,RTMP,HTTP(Multicast support)
DRM:NSTV etc.
Support App.:Xtream,Stalker,Youtube,Local IPTV link etc.
Video Decoder:HEVC/H.265,H.264,MPEG-4,H.263 P3,AVS,AVS plus,MPEG-2,MPEG-1
Video Output:CVBS*1, HDMI1.4
Video Format:PAL/NTSC
Aspect Ratio:4:3/16:9
Resolution:1080P,1080i,720P,576P etc.
Audio Decoder:MPEG1, MP3, MPEG-4 AAC&AAC+, DRA
Audio Output:HDMI1.4, A-L, A-R
Audio Mode:Left/Right/Stereo
Sampling Frequency:32KHz, 44.1KHz, 48KHz

Product Description

Software function for IPTV HEVC H.65 Box :

More IPTV HEVC H.265 Box model please click:https://www.eri-tech.com/product-category/set-top-box/iptv-box/

High performance 32-bit CK610M CPU integrates 16Kbytes instruction cache and 16Kbytes data cache. Provides up to 1500 DMIPS. JTAG debug supported n

SPI NOR or SPI NAND flash n

Built-in 128MB DDR3 SDRAM

The multi-standard video decoder supports JPEG/MJPEG, MPEG2, AVS, AVS plus, MPEG4, H.264, H.265 10bit/60fps HD or SD advanced video decoding. Error protection and concealment supported

The audio decoder supports MPEGI/II, MP3, Dolby Digital optional, Dolby Digital Plus optional, MPEG4 AAC, HE-AAC and DRA decoding. The output supports L/R and S/PDIF.

All of the PAL and NTSC analog TV standards supported.

4 channel video DAC integrated, and the following output modes are supported: 2CVBS/S-Video, CVBS/YCbCr, CVBS/RGB, YPbPr and RGB(progressive).

HDMI , HDCP and DVI compliant transmitter embedded.

2 channel audio DACs integrated, S/N is more than 90 dB.

2 USB2.0 Host integrated, High-speed and Full-speed devices supported.

A 10M/100M Ethernet MAC integrated.

Support standby mode.
