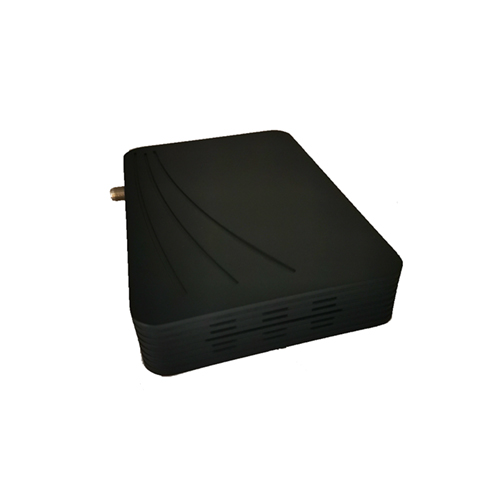

Hybrid DVB-C Set-top box with Android TV Amlogic S905X3/OS 9.0 or higher

Categories: ,

Product Description

General Informtion:

SoC: Amlogic S905X3

OS:Android™ 9.0 or higher

CPU: quad core ARM® Cortex™ A55

GPU:G31™ MP2

DRAM: DDR3/4 2GB (1G, 4GB Optional)

Flash: eMMC 16GB (8GB, 32GB, 64GB Optional )

WIFI: 802.11 a/b/g/n/ac,2.4GHz/5.0GHz (Optional)

Rear Panel :

1*HDMI 2.1(Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output)

1*AV OUT(480i/576i standard definition output)

2*USB(1 * USB 3.0 ; 1*USB 2.0)

1*RJ45(Ethernet Interface;Support 10/100M/1000M Optional)

1*TF CARD(Support 4GB/8GB/16GB/32GB/64GB)

1*Power In(DC5V 2A)

1* RF IN(DVB-C (ITU-T J.83A/C standard)

Front Panel:

1* IR Receiver

1* LED Indicator

Tuner Informaiton:

Frequency Range: 111~862MHz

Frequency Band:8MHz

Input Level: (64QAM)40~80dBμV, (256QAM)44~80dBμV

Input impedance: 75Ω

Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
