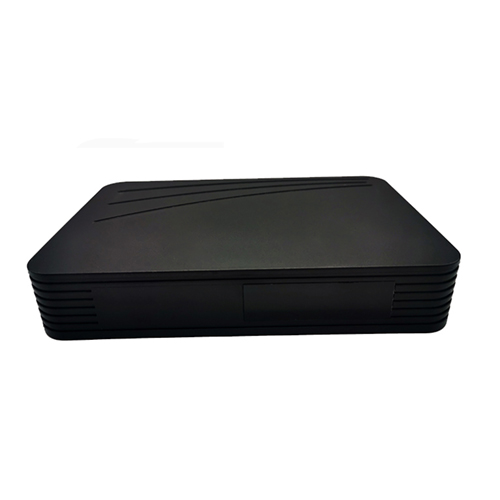

Product Description
General Informtion:
SoC: Amlogic S905X3
OS:Android™ 9.0 or higher
CPU: quad core ARM® Cortex™ A55
GPU:G31™ MP2
DRAM: DDR3/4 2GB (1G, 4GB Optional)
Flash: eMMC 16GB (8GB, 32GB, 64GB Optional )
WIFI: 802.11 a/b/g/n/ac,2.4GHz/5.0GHz (Optional)
Rear Panel :
1*HDMI 2.1(Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output)
1*AV OUT(480i/576i standard definition output)
2*USB(1 * USB 3.0 ; 1*USB 2.0)
1*RJ45(Ethernet Interface;Support 10/100M/1000M Optional)
1*TF CARD(Support 4GB/8GB/16GB/32GB/64GB)
1*Power In(DC5V 2A)
1* RF IN(DVB-C (ITU-T J.83A/C standard)
Front Panel:
1* IR Receiver
1* LED Indicator
Tuner Informaiton:
Frequency Range: 111~862MHz
Frequency Band:8MHz
Input Level: (64QAM)40~80dBμV, (256QAM)44~80dBμV
Input impedance: 75Ω
Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
