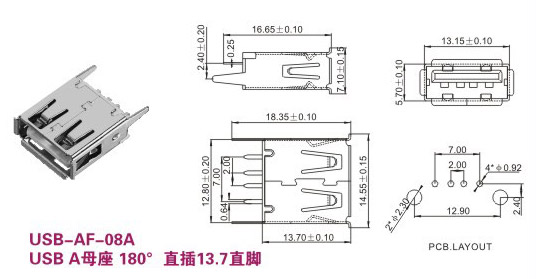

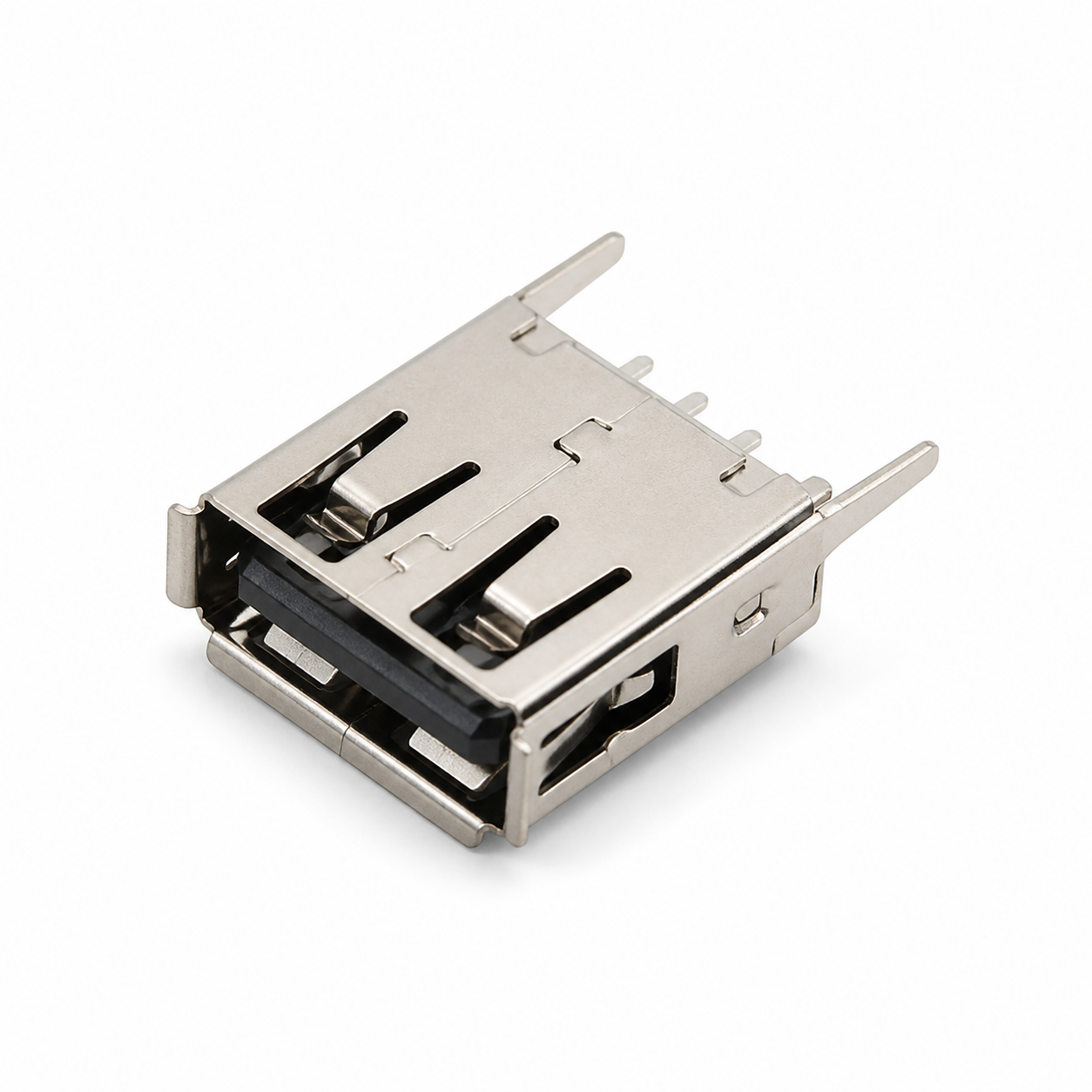

USB-AF-08A USB Type-A Female 180° DIP Receptacle
The USB-AF-08A is a single-port USB Type-A female receptacle for PCB-mounted USB interfaces. Its 180° straight DIP configuration with 13.7 mm straight pins provides a reliable through-hole mounting solution for standard USB Type-A connections.
Key Features
- Single-port USB Type-A female receptacle
- 180° straight DIP through-hole mounting
- 13.7 mm straight-pin version
- Front-entry USB interface for PCB applications
- Metal shell with retention tabs for secure board mounting
Applications
- Computers and peripheral equipment
- USB interface boards
- Industrial electronic devices
- OEM electronic assemblies
