Product Description
GT606 Dual Independent ON-OFF Rocker Switch

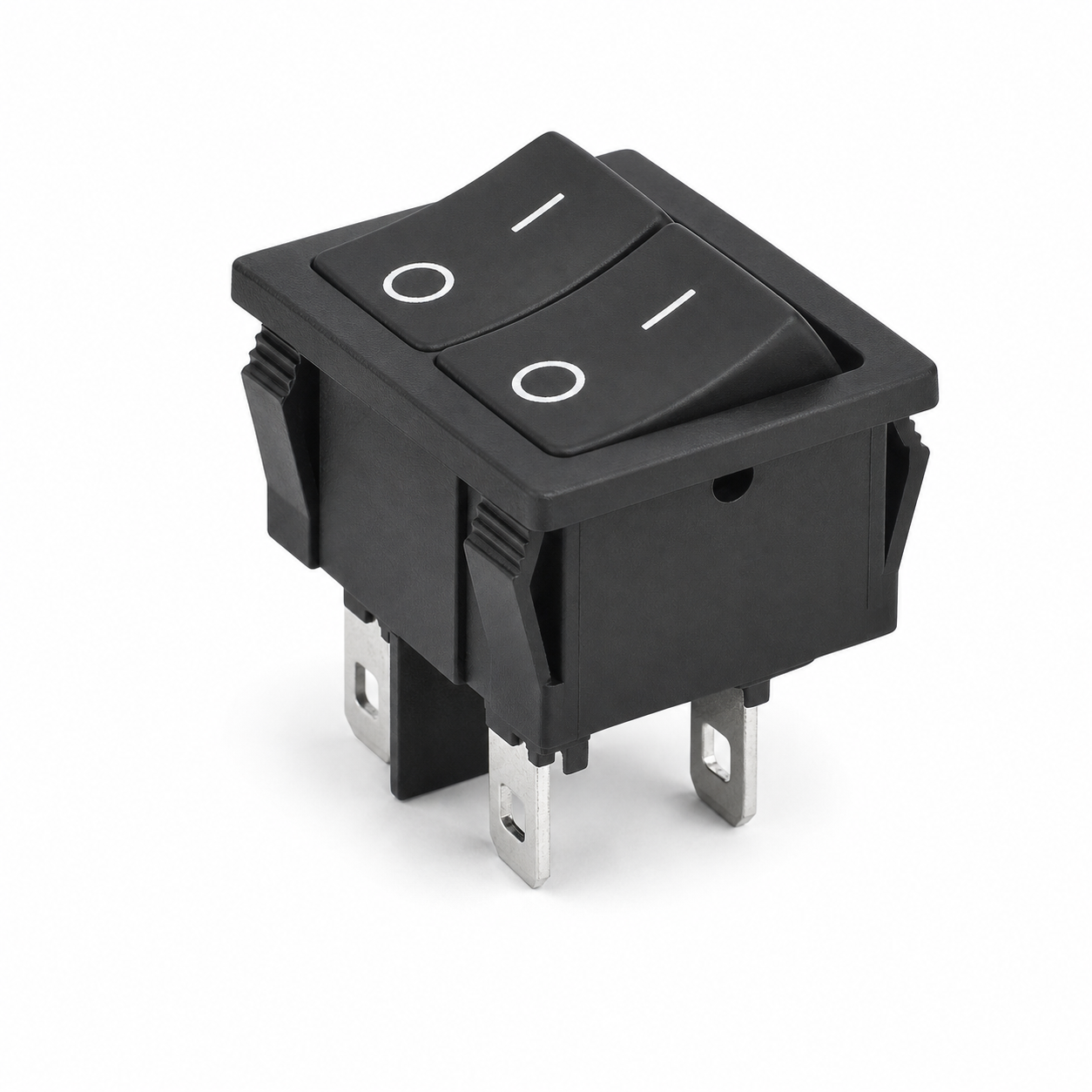

GT606-GH0B2BB is a compact dual rocker switch that integrates two independently operated OFF-ON controls in one snap-in panel-mount housing. Each black rocker actuator has clear I/O markings, allowing two electrical circuits or equipment functions to be controlled separately from a single panel opening.
The switch features a dark molded housing, side retaining clips and four downward blade terminals. Rated at 6A 250VAC or 10A 125VAC, it is suitable for appliances, power equipment, control panels and other applications requiring two independent power-control functions.
Key Specifications
- Model: GT606-GH0B2BB
- Switch type: Dual rocker switch
- Contact configuration: Two independent SPST circuits
- Switch function: OFF-ON for each rocker
- Number of rocker actuators: 2
- Number of terminals: 4
- Electrical rating: 6A 250VAC / 10A 125VAC
- Approximate bezel size: 24 × 21 mm
- Approximate housing height: 18.1 mm
- Approximate terminal projection: 7 mm
- Blade-terminal width: approximately 0.8 mm
- Snap-in panel mounting
- Supported panel thickness: 0.75–3.0 mm
- Black actuators with individual I/O markings
- Non-illuminated design

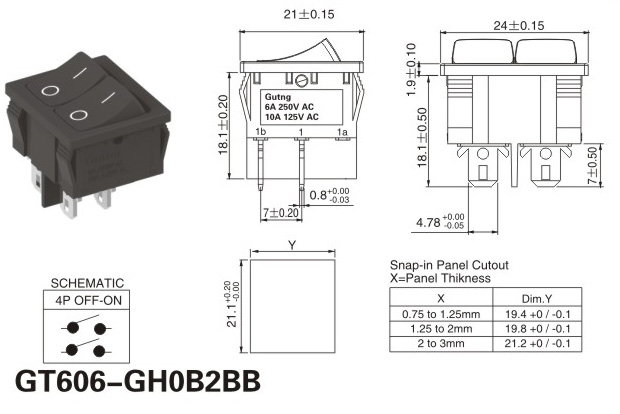

- Technical drawing and panel cutout specifications available
Panel Cutout Reference
- Cutout dimension on one side: approximately 21.1 mm
- For 0.75–1.25 mm panel thickness: Y = 19.4 +0/-0.1 mm
- For 1.25–2.0 mm panel thickness: Y = 19.8 +0/-0.1 mm
- For 2.0–3.0 mm panel thickness: Y = 21.2 +0/-0.1 mm
Typical Applications
- Household appliances
- Industrial equipment
- Power supplies
- Control panels
- Audio and electronic equipment
- Machines requiring two independent controls
- Electrical equipment and power tools
Contact ERI with your required quantity, application and technical specifications for model confirmation, samples and bulk-order quotation.
