Product Description
GT505 High-Current Three-Position Rocker Switch

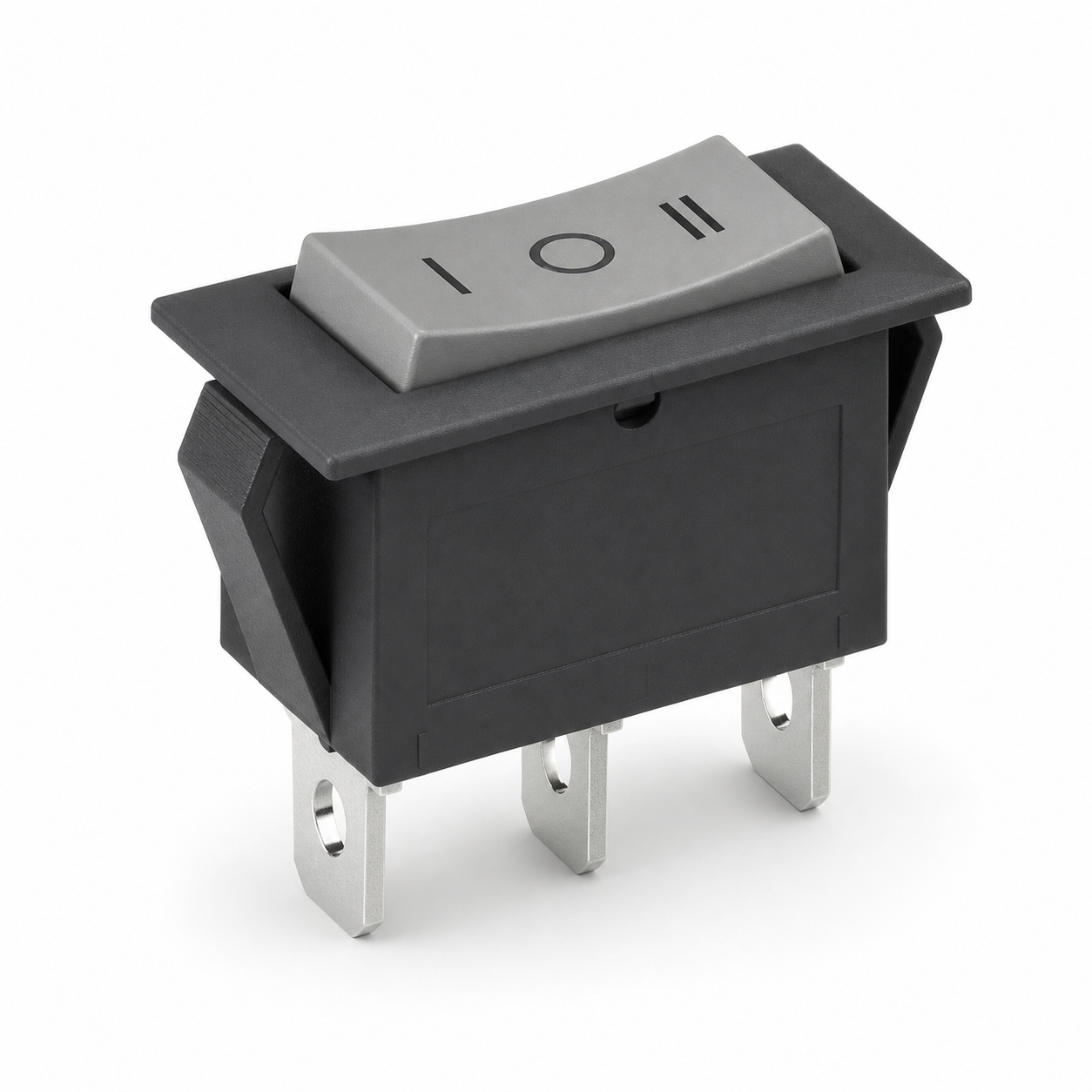

GT505-CF0D2WA is a high-current three-terminal SPDT ON-OFF-ON rocker switch designed for snap-in panel mounting. It features a dark rectangular housing, a contrasting gray three-position actuator with clear I–O–II markings, side retaining clips and three downward blade terminals.
Rated at 16A 250VAC or 20A 125VAC, this non-illuminated rocker switch provides two selectable ON positions with a center OFF position. It is suitable for power and operating-mode control in appliances, industrial equipment, power supplies and control panels.
Key Specifications
- Model: GT505-CF0D2WA
- Contact configuration: SPDT
- Switch function: ON-OFF-ON
- Number of positions: 3
- Number of terminals: 3
- Electrical rating: 16A 250VAC / 20A 125VAC
- Approximate bezel size: 31.8 × 15.4 mm
- Approximate body height: 27 mm
- Terminal spacing: 11 ±0.20 mm
- Three downward blade terminals
- Snap-in panel mounting
- Supported panel thickness: 0.75–3.0 mm
- Gray actuator with I–O–II markings
- Non-illuminated design

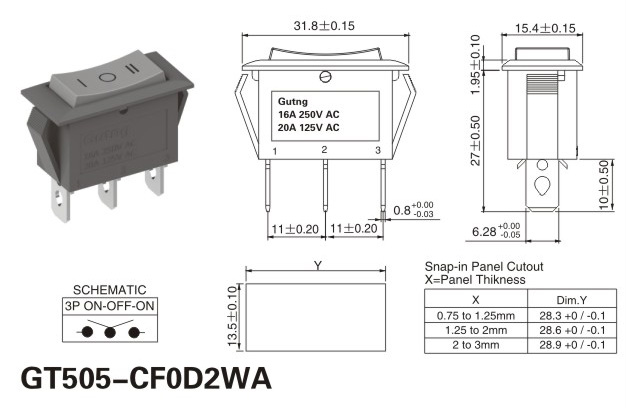

- Technical drawing and panel cutout specifications available
Panel Cutout Reference
- Cutout width: approximately 13.5 mm
- For 0.75–1.25 mm panel thickness: Y = 28.3 +0/-0.1 mm
- For 1.25–2.0 mm panel thickness: Y = 28.6 +0/-0.1 mm
- For 2.0–3.0 mm panel thickness: Y = 28.9 +0/-0.1 mm
Typical Applications
- Household appliances
- Industrial equipment
- Power supplies
- Control panels
- Operating-mode selectors
- Power tools and electrical equipment
Contact ERI with your required quantity, application and technical specifications for model confirmation, samples and bulk-order quotation.
