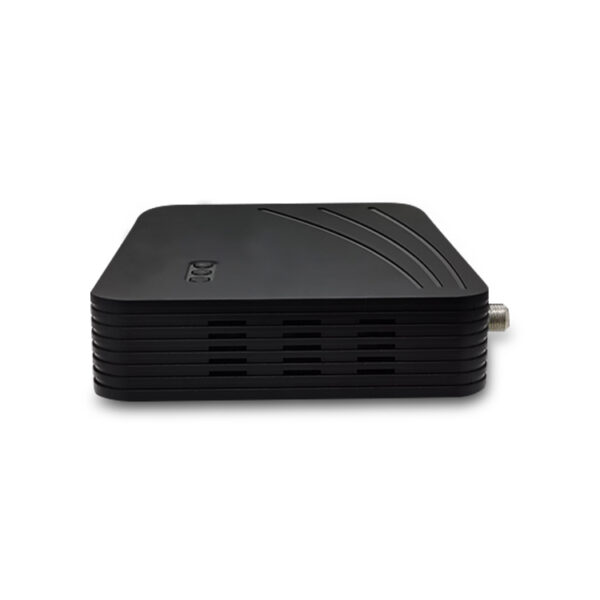

DVB T2 Digital Terrestrial Receiver ERI-DVBT2HD006

Standard:DVB-T2/T/C
CPU Frequency:1500DMIPS 32bit
Flash:8MB
DDR2:64MB
Input Frequency Range:177.5Mhz-858Mhz
RF Input Level:79 ~ 23dBm
Input Impedance:75Ω
Bandwidth6M,7M,8M
Video Decoder:JPEG/MJPEG,MPEG2,MPEG4,H.264,H.265 10bit/60fps HD
Video Output:CVBS*1, HDMI1.4
Video Format:PAL/NTSC
Aspect Ratio:4:3/16:9
Resolution:1080P,1080i,720P,576P etc.
Audio Decoder:MPEG1, MP3, MPEG-4 AAC&AAC+, DRA
Audio Output:HDMI1.4, A-L, A-R
Audio Mode:Left/Right/Stereo
Sampling Frequency:32KHz, 44.1KHz, 48KHz
Categories: ,

Product Description

Software function for DVB T2 Digital Terrestrial Receiver :

More DVB C model please click:https://www.eri-tech.com/product-category/set-top-box/dvb-t2-box/

1.Compliant with DVB-T2 Standard Fully

2.MPEG-2/MPEG-4/H.264/H.265 Decoded

3.PAL: 576i/576p/720p/1080i/1080P

4.NTSC: 480i/480p/720p/1080i/1080P

5.CAS Supported

6.USB WIFI Dongle both Internet and Interactive Function

7.USB PVR and Time-shift

8.Boot-up Logo, Radio Image

9.7-day EPG with Synopsis and Rolling Event

10.Channel Booking and Editing

11.Email, Parental Lock and Timer

12.Audio, Video and Picture Setting

13.STB Upgrade via USB,OTA

14.Copy url(.m3u8) into local IPTV

15.Support Stalker,Megogo,Xtream,IVI,Youtube,Weather,Rss Reader…

16.Can integrated your own IPTV system

Basic information for CPU:

GX6702S5 is a high performance multi standard HD decoder for DTV set-top box.

It integrates a 32-bit CK610M CPU, DVB-T2/DVB-T/DVB-C demodulator.

Multi standard video decoder including MPEG2,MPEG4, AVS, AVS plus, H.264, H.265.

Multi standard audio decoder, HDR video decoding and display,deinterlacer and video post processor.

True-color OSD and 2D graphics accelerator, TV encoder, video DACs, audio DACs, HDMI transmitter, USB2.0 Host and so on.

It guarantees powerful function, excellent performance and low BOM cost.

The channel demodulator is designed to DVB-T2(EN 302755) , DVB-T (EN 300744), composed of dual-ADC, QPSK/QPSK/16QAM/64QAM/256QAM demodulator, LDPC FEC etc.

It has the high-speed searching mode for blind channel/symbol rate or/and code rate acquisition, which actualizes high-speed program search in whole band without any channel information.

The channel demodulator can also support DVB-C, composed of ADC, QAM demodulator, FEC, etc.

The 32-bit CK610M CPU with high performance offers strong ability of software process, which supports a great many advanced applications.

The mature real-time operating system and API library can shorten the developing period remarkably.

The multi standard video decoder supports MPEG2/4, H.264, H.265 10bit/60fps, AVS, AVS plus and JPEG/MJPEG HD video decoding.

Patented video post-processing unit achieves satisfied deinterlacing and scaling effect.

The processor based audio decoder supports MPEGI/II, MP3, Dolby Digital optional, Dolby Digital Plus optional, MPEG4 AAC, HE-AAC and DRA decoding.

The PAL/NTSC encoder, Four-channel video DAC and integrated HDMI transmitter can be configured as many HD and SD video output mode.

Concurrent HD and SD output mode supported.

True-color OSD and 2D graphics accelerator may supply flowery menu effect, which can meet the requirement of browsers.

Meanwhile, owing to the flexible capture engine, we can design various multi picture browser and screen-capture functions.

USB2.0 Host may supply many advanced applications, such as PVR GX6702S5 has built-in POR(Power on reset) IP which can reset the chip after power on.

GX6702S5 can meet the high performance multi standard requirement of HD STB market.
