DC0940 Right-Angle PCB-Mount DC Power Jack

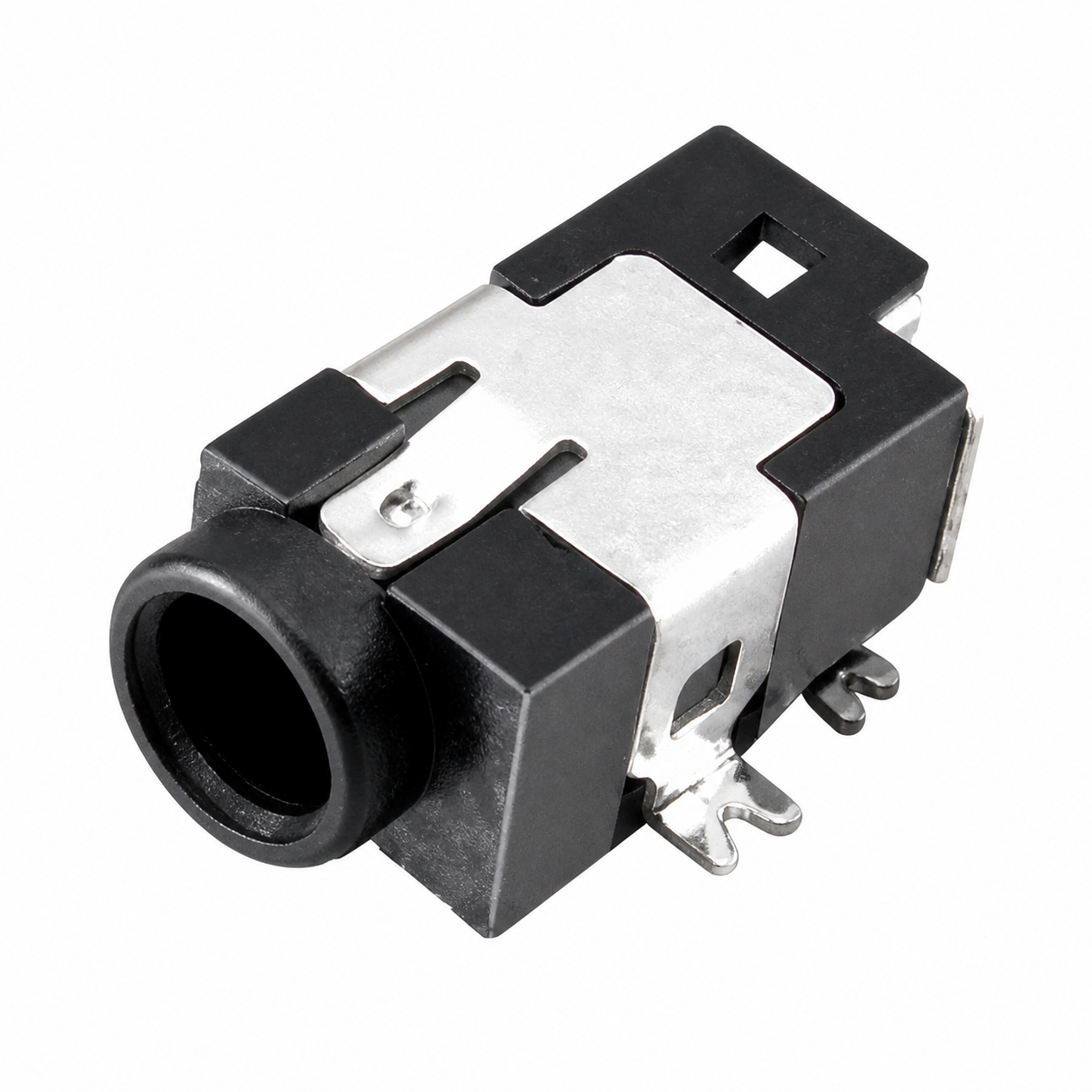

DC0940 is a compact right-angle DC power jack designed for PCB-mounted power input in consumer electronics, communication equipment and embedded devices. Its black insulated body, metal shielding cover and edge-facing receptacle support space-efficient enclosure designs.

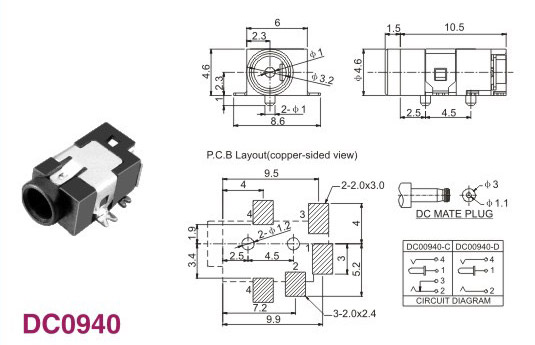

The supplied drawing specifies a mating DC plug with an outer diameter of Ø3.0 mm and an inner diameter of Ø1.1 mm. Circuit variants DC00940-C and DC00940-D are shown; confirm the required suffix and switching circuit before ordering.
Key Features
- Compact right-angle PCB-mount construction
- Black insulated housing with metal shielding cover
- Four-terminal PCB connection
- Compatible with Ø3.0 mm outer / Ø1.1 mm inner mating plug
- C and D circuit variants shown in the technical drawing
- Suitable for edge-accessible DC power inputs
- Technical drawing and PCB layout available for design verification
Mechanical Specifications
| Model | DC0940 |
|---|---|
| Drawing References | DC00940-C / DC00940-D |
| Connector Type | Right-angle PCB-mount DC power jack |
| Mating Plug | Ø3.0 mm outer diameter / Ø1.1 mm inner diameter |
| Front Width | Approximately 6.0 mm |
| Front Height | Approximately 4.66 mm |
| Body Depth | Approximately 10.5 mm |
| Front Section Length | Approximately 1.5 mm |
| Terminal Count | 4 |
| Mounting Method | PCB mount |
| Dimensions | Refer to the supplied drawing; all dimensions are in mm |
Typical Applications
- Consumer electronics
- Communication equipment
- Embedded devices
- Compact power-input modules
- Test and measurement instruments
Ordering Information
Please provide the required circuit suffix, mating-plug dimensions, electrical rating, PCB layout, quantity and application. Electrical ratings are not shown in the supplied drawing and should be confirmed against the approved specification and sample before production.
